Thermocouple Wire High Temperature, Standard and Extension Grades

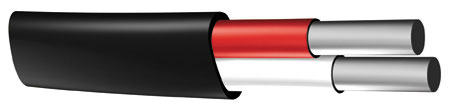

P/P-20-JX: PVC Insulated Thermocouple Wire, Solid Conductors, Type J

Product Description: Polyvinyl Chloride. Flame retardant PVC insulation provides excellent chemical and abrasion resistance. Construction is designed for OEM application as well as sensor manufacturing and transportation applications requiring continuous temperature resistance of up to 221ºF (105ºC).

Industry Applications: "OEM's, Petroleum, Sensor Manufacturing, Transportation"

Quantity in Basket: None
Max Temp - single use: 221ºF/105ºC
Max Temp - continuous: 221ºF/105ºC
Minimum Temperature: -15ºF/-26ºC
Calibration: JX
Wire Gauge: 20
Insulation: Flame retardant PVC
Jacket: Flame retardant PVC
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair



P/P-20F-JX: PVC Insulated Thermocouple Wire-Stranded Conductors, Type J

Product Description: Polyvinyl Chloride. Flame retardant PVC insulation provides excellent chemical and abrasion resistance. Construction is designed for OEM application as well as sensor manufacturing and transportation applications requiring continuous temperature resistance of up to 221ºF (105ºC).

Industry Applications: "OEM's, Petroleum, Sensor Manufacturing, Transportation"

Quantity in Basket: None
Max Temp - single use: 221ºF/105ºC
Max Temp - continuous: 221ºF/105ºC
Minimum Temperature: -15ºF/-26ºC
Calibration: JX
Wire Gauge: 20
Insulation: Flame retardant PVC
Jacket: Flame retardant PVC
Conductor: Stranded
Construction: Parallel Conductors
Pair Count: 1 Pair

P/P-20-KX: PVC Insulated Thermocouple Wire, Solid Conductors, Type K

Product Description: Polyvinyl Chloride. Flame retardant PVC insulation provides excellent chemical and abrasion resistance. Construction is designed for OEM application as well as sensor manufacturing and transportation applications requiring continuous temperature resistance of up to 221ºF (105ºC).

Industry Applications: "OEM's, Petroleum, Sensor Manufacturing, Transportation"

Quantity in Basket: None
Max Temp - single use: 221ºF/105ºC
Max Temp - continuous: 221ºF/105ºC
Minimum Temperature: -15ºF/-26ºC
Calibration: KX
Wire Gauge: 20
Insulation: Flame retardant PVC
Jacket: Flame retardant PVC
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair




P/P-20F-KX: PVC Insulated thermocouple Wire, Stranded Conductors, Type K


Product Description: Polyvinyl Chloride. Flame retardant PVC insulation provides excellent chemical and abrasion resistance. Construction is designed for OEM application as well as sensor manufacturing and transportation applications requiring continuous temperature resistance of up to 221ºF (105ºC).

Industry Applications: "OEM's, Petroleum, Sensor Manufacturing, Transportation"

Quantity in Basket: None
Max Temp - single use: 221ºF/105ºC
Max Temp - continuous: 221ºF/105ºC
Minimum Temperature: -15ºF/-26ºC
Calibration: KX
Wire Gauge: 20
Insulation: Flame retardant PVC
Jacket: Flame retardant PVC
Conductor: Stranded
Construction: Parallel Conductors
Pair Count: 1 Pair




G/G-20-J:G- Glass Fiberglass Insulated Thermocouple Wire, Solid Conductors, Type J

Product Description: G-Glass Fiberglass. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Fiberglass is flexible and designed for continuous use in temperatures rating up to 950ºF (510ºC).

Industry Applications: "Aerospace And Composites, Aluminum, Appliance, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, OEM's, Steel, Transportation, OEM's, Sensor Manufacturing"

Quantity in Basket: None
Max Temp - single use: 1200ºF/650ºC
Max Temp - continuous: 950ºF/510ºC
Calibration: J
Wire Gauge: 20
Insulation: Braided fiberglass with high temperature impregnation
Jacket: Braided fiberglass with high temperature impregnation
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair




G/G-20F-J:G- Glass Fiberglass Insulated Thermocouple Wire, Stranded Conductors, Type J


Product Description: G-Glass Fiberglass. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Fiberglass is flexible and designed for continuous use in temperatures rating up to 950ºF (510ºC).

Industry Applications: "Aerospace And Composites, Aluminum, Appliance, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, OEM's, Steel, Transportation, OEM's, Sensor Manufacturing"

Quantity in Basket: None
Max Temp - single use: 1200ºF/650ºC
Max Temp - continuous: 950ºF/510ºC
Calibration: J
Wire Gauge: 20
Insulation: Braided fiberglass with high temperature impregnation
Jacket: Braided fiberglass with high temperature impregnation
Conductor: Stranded
Construction: Parallel Conductors
Pair Count: 1 Pair




G/G-20-K: G- Glass Fiberglass Insulated Thermocouple Wire, Solid Conductors, Type K


Product Description: G-Glass Fiberglass. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Fiberglass is flexible and designed for continuous use in temperatures rating up to 950ºF (510ºC).

Industry Applications: "Aerospace And Composites, Aluminum, Appliance, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, OEM's, Steel, Transportation, OEM's, Sensor Manufacturing"

Quantity in Basket: None
Max Temp - single use: 1200ºF/650ºC
Max Temp - continuous: 950ºF/510ºC
Calibration: K
Wire Gauge: 20
Insulation: Braided fiberglass with high temperature impregnation
Jacket: Braided fiberglass with high temperature impregnation
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair




G/G-20F-K: Glass Fiberglass Insulated Thermocouple Wire, Stranded Conductors, Type K


Product Description: G-Glass Fiberglass. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Fiberglass is flexible and designed for continuous use in temperatures rating up to 950ºF (510ºC).

Industry Applications: "Aerospace And Composites, Aluminum, Appliance, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, OEM's, Steel, Transportation, OEM's, Sensor Manufacturing"

Quantity in Basket: None
Max Temp - single use: 1200ºF/650ºC
Max Temp - continuous: 950ºF/510ºC
Calibration: K
Wire Gauge: 20
Insulation: Braided fiberglass with high temperature impregnation
Jacket: Braided fiberglass with high temperature impregnation
Conductor: Stranded
Construction: Parallel Conductors
Pair Count: 1 Pair




G/GS-20-J: G-Glass Fiberglass with Stainless Steel Overbraid, Solid Conductors, Type J


Product Description: G-Glass Fiberglass w/ Stainless Steel Braid. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Stainless steel overbraid is applied on top of fiberglass jacket for improved abrasion resistance. Designed for continuous use in temperatures rating up to 950ºF (510ºC).

Industry Applications: "Aerospace And Composites, Aluminum, Appliance, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, OEM's, Steel, Transportation, OEM's, Sensor Manufacturing"

Quantity in Basket: None
Max Temp - single use: 1200ºF/650ºC
Max Temp - continuous: 950ºF/510ºC
Calibration: J
Wire Gauge: 20
Insulation: Braided fiberglass with high temperature impregnation
Jacket: Braided fiberglass with high temperature impregnation and stainless steel overbraid
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair




G/GS-20F-J: G-Glass Fiberglass with Stainless Steel Overbraid, Solid Conductors, Type J


Product Description: G-Glass Fiberglass w/ Stainless Steel Braid. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Stainless steel overbraid is applied on top of fiberglass jacket for improved abrasion resistance. Designed for continuous use in temperatures rating up to 950ºF (510ºC).

Industry Applications: "Aerospace And Composites, Aluminum, Appliance, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, OEM's, Steel, Transportation, OEM's, Sensor Manufacturing"

Quantity in Basket: None
Max Temp - single use: 1200ºF/650ºC
Max Temp - continuous: 950ºF/510ºC
Calibration: J
Wire Gauge: 20
Insulation: Braided fiberglass with high temperature impregnation
Jacket: Braided fiberglass with high temperature impregnation and stainless steel overbraid
Conductor: Stranded
Construction: Parallel Conductors
Pair Count: 1 Pair

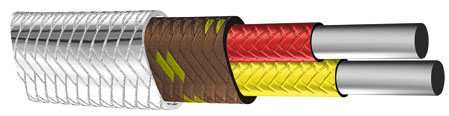

G/GS-20-K: G-Glass Fiberglass with Stainless Steel Overbraid, Solid Conductors, Type K


Product Description: G-Glass Fiberglass w/ Stainless Steel Braid. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Stainless steel overbraid is applied on top of fiberglass jacket for improved abrasion resistance. Designed for continuous use in temperatures rating up to 950ºF (510ºC).

Industry Applications: "Aerospace And Composites, Aluminum, Appliance, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, OEM's, Steel, Transportation, OEM's, Sensor Manufacturing"

Quantity in Basket: None
Max Temp - single use: 1200ºF/650ºC
Max Temp - continuous: 950ºF/510ºC
Calibration: K
Wire Gauge: 20
Insulation: Braided fiberglass with high temperature impregnation
Jacket: Braided fiberglass with high temperature impregnation and stainless steel overbraid
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair

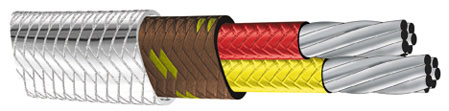

G/GS-20F-K: G-Glass Fiberglass with Stainless Steel Overbraid, Sranded Conductors, Type K


Product Description: G-Glass Fiberglass w/ Stainless Steel Braid. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Stainless steel overbraid is applied on top of fiberglass jacket for improved abrasion resistance. Designed for continuous use in temperatures rating up to 950ºF (510ºC).

Industry Applications: "Aerospace And Composites, Aluminum, Appliance, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, OEM's, Steel, Transportation, OEM's, Sensor Manufacturing"

Quantity in Basket: None
Max Temp - single use: 1200ºF/650ºC
Max Temp - continuous: 950ºF/510ºC
Calibration: K
Wire Gauge: 20
Insulation: Braided fiberglass with high temperature impregnation
Jacket: Braided fiberglass with high temperature impregnation and stainless steel overbraid
Conductor: Stranded
Construction: Parallel Conductors
Pair Count: 1 Pair




HG/HG90-20-KK: High Temperature Thermocouple Wire, 1800°F, Solid Conductors, Type K


Product Description: HG Yarn - Vitreous Silica Fiber are braided on individual conductors and the construction is completed with an overall braid of vitreous silica fiber. The construction is specially designed for continuous extreme temperature application to 1800ºF (982ºC).

Industry Applications: "Aluminum, Component Heat Testing, Field Heat Treating, Forging, Heat Treating, Metal Qualification, OEM's, Sensor Manufacturing, Steel, Utilities Power Generation, OEM's"

Quantity in Basket: None
Max Temp - single use: 2000ºF/1093ºC
Max Temp - continuous: 1800ºF/982ºC
Calibration: KK
Wire Gauge: 20
Insulation: Braided vitreous silica
Jacket: Braided vitreous silica
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair




CEFIR2200-20-KK: High Temperature Thermocouple Wire, 2200°F, Solid Conductors, Type K


Product Description: CEFIR®- Ceramic Fiber designed for extreme temperature applications. Ceramic fiber is braided on the individual conductors and the jacket giving a continuous temperature rating up to 2200ºF (1204ºC). The ceramic fiber is flexible throughout the extended temperature range. The high temperature limit of CEFIR® allows it to be used in areas where beaded ceramic thermocouples or sheathed thermocouples were previously specified.

Industry Applications: "Aluminum, Component Heat Testing, Field Heat Treating, Forgings, Glass, Ceramics, Clay Tiles, Brick, Heat Treating, Metal Qualification, Steel, Utilities Power Generation, OEM's, Sensor Manufacturing

Quantity in Basket: None
Max Temp - single use: 2400ºF/1316ºC
Max Temp - continuous: 2200ºF/1204ºC
Calibration: KK
Wire Gauge: 20
Insulation: Braided ceramic fiber
Jacket: Braided ceramic fiber
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair




UP/ALPTW-20-JX: Thermocouple Extention Wire, Flame Retardant, PVC Insulated, Type J


Product Description: Overall Shield 300 Volt PVC. Flame retardant polyvinyl chloride (PVC) insulation over conductors twisted into pairs. Pairs are cables together with an overall shield and PVC overall jacket. Construction is UL listed PLTC or ITC rated 300 volt.

Industry Applications: "OEM's, Petroleum, Sensor Manufacturing, Transportation, New Plant Construction"

Quantity in Basket: None
Max Temp - single use: 221ºF/105ºC
Max Temp - continuous: 221ºF/105ºC
Minimum Temperature: -15ºF/-26ºC
Calibration: JX
Wire Gauge: 20
Insulation: Nominal .016” (.40MM) flame retardant PVC
Jacket: Nominal .016” (.40MM) flame retardant PVC
Conductor: Solid
Construction: Single Twisted Pair
Pair Count: 1 Pair




UP/ALPTW-20-KX: Thermocouple Extention Wire, Flame Retardant PVC Insulated, Type K

Product Description: Overall Shield 300 Volt PVC. Flame retardant polyvinyl chloride (PVC) insulation over conductors twisted into pairs. Pairs are cables together with an overall shield and PVC overall jacket. Construction is UL listed PLTC or ITC rated 300 volt.

Industry Applications: "OEM's, Petroleum, Sensor Manufacturing, Transportation, New Plant Construction"

Quantity in Basket: None
Max Temp - single use: 221ºF/105ºC
Max Temp - continuous: 221ºF/105ºC
Minimum Temperature: -15ºF/-26ºC
Calibration: KX
Wire Gauge: 20
Insulation: Nominal .016” (.40MM) flame retardant PVC
Jacket: Nominal .016” (.40MM) flame retardant PVC
Conductor: Solid
Construction: Single Twisted Pair
Pair Count: 1 Pair




TEX/TEX-20-J:Thermocouple Wire, Extruded Fluoropolymers Food and Pharmaceuticals, J


Product Description: Fluoropolymers. These extruded fluoropolymers are rated for use from -328ºF (-200 ºC) up to 400ºF (200ºC). FEP materials are flame retardant and non propagating in fire conditions. All are moisture and chemical resistant and accepted for use around food and pharmaceuticals.

Industry Applications: "Aerospace And Composites, Field Heat Treating, Food And Pharmaceutical, Glass, Ceramics, Clay Tiles, Bricks, OEM's, Petroleum, Sensor Manufacturing, Transportation, Utilities Power Generation"

Quantity in Basket: None
Max Temp - single use: 400ºF/200ºC
Max Temp - continuous: 400ºF/200ºC
Minimum Temperature: -328ºF/-200ºC
Calibration: J
Wire Gauge: 20
Insulation: Flame retardant extruded fluoropolymer FEP
Jacket: Flame retardant extruded fluoropolymer FEP
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair




TEX/TEX-20-K: Thermocouple Wire, Extruded Fluoropolymers Food and Pharmaceuticals, K


Product Description: Fluoropolymers. These extruded fluoropolymers are rated for use from -328ºF (-200 ºC) up to 400ºF (200ºC). FEP materials are flame retardant and non propagating in fire conditions. All are moisture and chemical resistant and accepted for use around food and pharmaceuticals.

Industry Applications: "Aerospace And Composites, Field Heat Treating, Food And Pharmaceutical, Glass, Ceramics, Clay Tiles, Bricks, OEM's, Petroleum, Sensor Manufacturing, Transportation, Utilities Power Generation"

Quantity in Basket: None
Max Temp - single use: 400ºF/200ºC
Max Temp - continuous: 400ºF/200ºC
Minimum Temperature: -328ºF/-200ºC
Calibration: K
Wire Gauge: 20
Insulation: Flame retardant extruded fluoropolymer FEP
Jacket: Flame retardant extruded fluoropolymer FEP
Conductor: Solid
Construction: Parallel Conductors
Pair Count: 1 Pair
